Gascolators

There are 3 types of Gascolator produced by Andair.

The first, and newest addition to the product line is the GAS10-70. This gascolator is for 1/4" fuel lines, and has been designed for use with Light Sport and Ultralight Aircraft. It features dual filters, and has a screw locking ring that prevents the bowl from coming off, and a facility for this to be wirelocked.

The other 2 Gascolators have been designed for 3/8" and 1/2" lines. Each type has a screw locking ring that prevents the bowl from coming off, and a facility for this to be wirelocked. The bowl is internally sealed with an Viton (R) O-ring. A PTFE coated 70 micron Stainless Steel mesh is used as the filter screen. The PTFE coating helps prevent water from passing, by maintaining it as a droplet formation. A large filter area is present and wide passages have been incoropated so that the pressure loss through the Gascolators is kept to an absolute minimum. There is an 1/8 NPT hole on the bottom of the bowl so it can be drained and also one on the top of the body. This one can be used as a pressure tapping or a filtered supply to the primer pump. A selection of fittings can also be used with the GAS375 and the GAS500.

Click the Accessories - Fittings for more details, the fittings can be chosen and swapped during the interactive ordering process.

All the Gascolators include a self bleeding air bleed. Here, on first use, and immediately after the bowl/filter has been removed the air trapped inside will automatically be purged out.

Spares for all of the Gascolators manufactured by Andair are available from the Accessories - Gascolator Spares page.

<< Back to Category List

Product Image

£93.45
Add

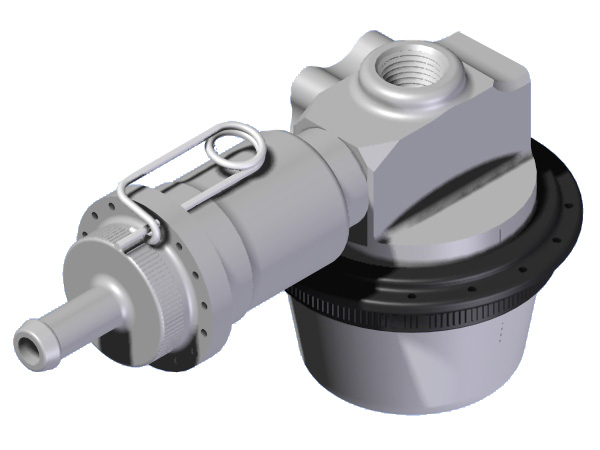

GAS10-70 Gascolator

The Andair ¼” Dual Filter/Gascolator GAS10-70 has been designed for use with Light Sport, Ultralight and Microlight Aircraft. For maximum efficiency this gascolator has Dual Filters; a 100 micron filter in the bowl and a 70 micron filter in the outlet line, useful when unapproved.

View more information...

Product Image

from £110.25

GAS375 Gascolator

The all aluminium 3/8” Andair Gascolator GAS375 offers a choice of fittings on both the inlet and the outlet plus a choice of fuel flow direction. All Andair Gascolators can be sited either on the suction side or the pressure side of the fuel pump.

View more information...

Product Image

from £196.35

GAS500 Gascolator

The all aluminium ½” Andair Gascolator GAS500 offers a choice of fittings on both the inlet and the outlet plus a choice of fuel flow direction. All Andair Gascolators can be sited either on the suction side or the pressure side of the fuel pump.

View more information...
